CS250 Lab 8: Floating Point

Due Monday, April 21


Image Source
Ox-drawn carts in Mumbai, India.

Version 1: Locomotives and Oxen

Assume that a typical ox weights around 2,000 lbs, and can produce a pulling force 2.5-3 times its own weight. This gives a figure of around 6,000 lbs of pulling force per ox. In many cases, multiple oxen are used to pull a single wagon.

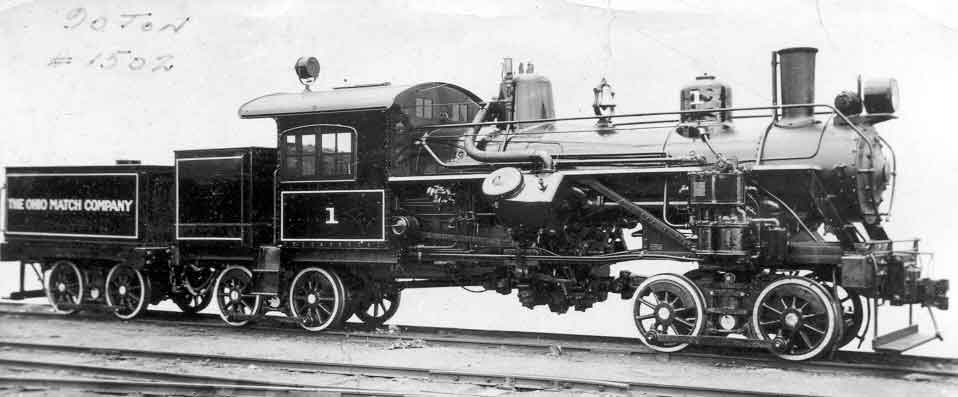

Geared steam locomotives, such as the Heisler which is rusting away at Locomotive Park in downtown Lewiston, can pull up to the friction limit of their wheels. Unlike standard (non-geared) steam locomotives, a geared steam locomotive has a drive-shaft running the length of the machine, providing all wheel drive (including the wheels under the fuel supply). Steel wheels have poor traction on steel rails, and as such the maximum force is limited to around 30% of the locomotive weight (about 90 tons for the Lewiston Heisler).

Write a program that will calculate the pulling force of a locomotive in terms of oxen. The weight of the locomotive should be a user input (with scanf).

Version 2: Bulldozers and Oxen

Unlike locomotives, bulldozers have excellent traction. The exact amount of traction depends on the surface the bulldozer is sitting on, but 1.75 times the weight of the bulldozer seems to be a reasonable value (source: random forum posts).

Modify your program so that the traction is adjustable (instead of 30%, or 0.3, use 1.75 for a bulldozer). Test the program with the Caterpillar D5, a typical bulldozer like you might see at a house construction site. Check it again with the Caterpillar D11 or the Komatsu D575A, which are large bulldozers used for surface mining.
